Product Details

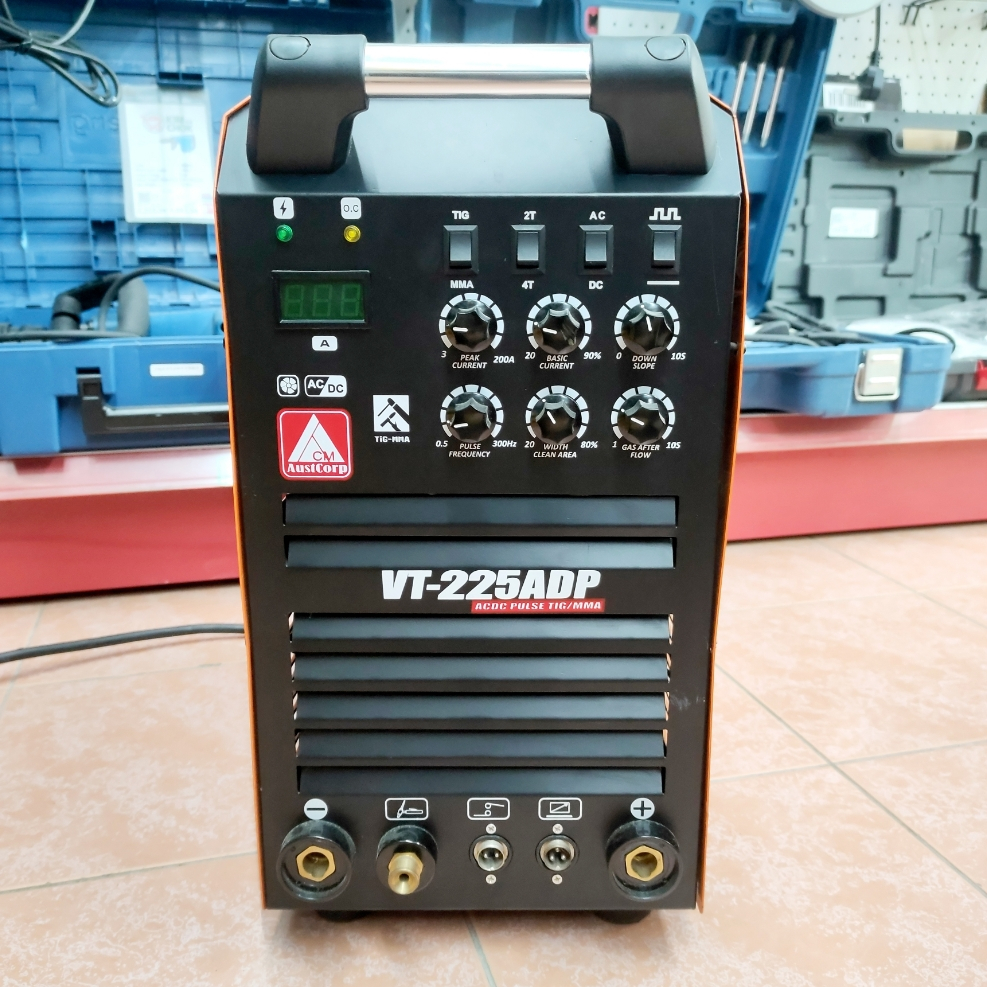

The inverter VT-225ADP offers much more than you would expect from a welder this size. Weighing in at just under 20.7kg the Inverter VT-225ADP is no lightweight contender. It packs the full punch of heavyweight professionals that you can take to the most demanding job sites. It can operate from a portable generator.
Features :
- DC TIG Features: Exceptionally smooth and precise arc for welding exotic materials.
- DC inverter for TIG with advanced inverter technology to optimize arc performance. Improved TIG Starting. Now starts DC(-) to maintain sharp tungsten.
- AC TIG Features: Extended AC balance (20–80%) controls the amount of oxide cleaning, which is essential for high-quality welds on aluminum.
- Advanced squarewave, fast freezing puddle, deep penetration, and fast travel speeds.
- frequency (0.5–300 Hz) controls the width of the arc cone and the force of the arc.
- Thermal overload protection with an indicator light helps prevent machine damage if the duty cycle is exceeded or airflow is blocked.
- 200 amps @ 60% duty cycle are the highest output rating in this machine class.
Processes :
- TIG (GTAW)
- PULSE TIG (GTAW-P)
- MMA

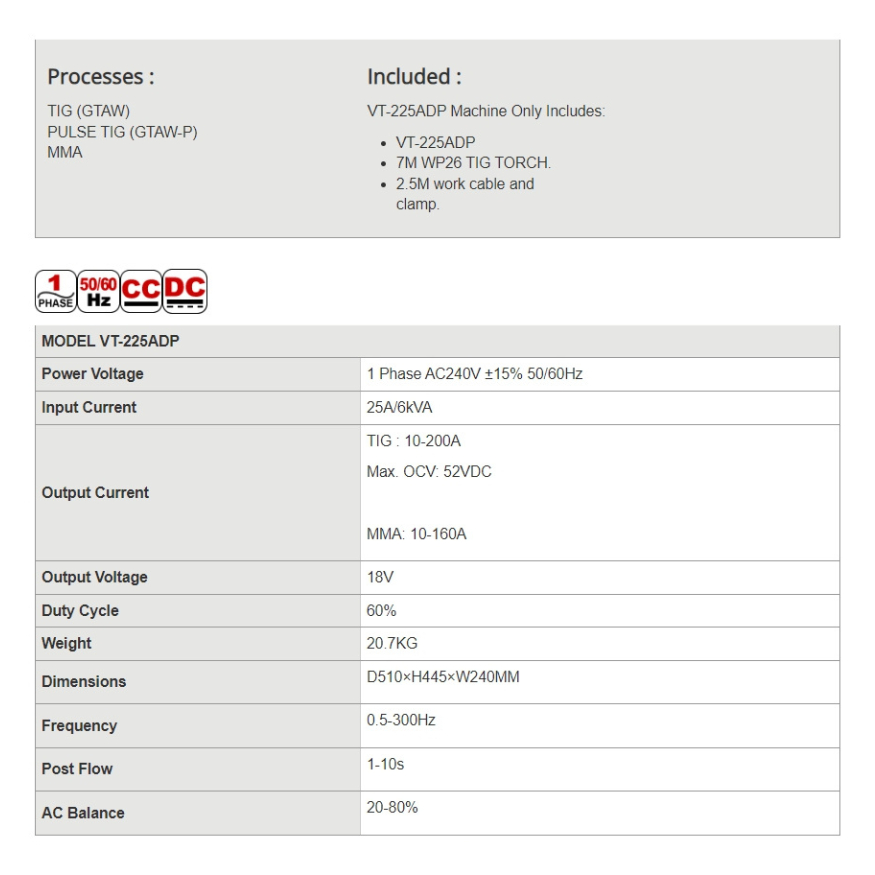

Specifications:
Brand : AUSTCORP
Model : VT-225ADP
Power Voltage : 1 Phase AC240V ±15% 50/60Hz
Input Current : 25A/6kVA
Output Current
- TIG : 10-200A
- Max. OCV: 52VDC
- MMA: 10-160A
Output Voltage : 18V
Duty Cycle : 60%
Weight : 20.7KG
Dimensions : (D)510 × (H)445 × (W)240mm
Frequency : 0.5-300Hz
Post Flow : 1-10s
AC Balance : 20-80%
Warranty : 12 Months
*VT-225ADP Machine Only ( Display set without box )
